Sync Waves and Phases

Control the order of resource deployment using sync waves and phases

Sync waves and phases allow you to control the order in which Argo CD applies resources during a sync operation. This is essential for dependencies like databases before applications, or configuration before deployments.

Understanding Phases

Argo CD supports multiple sync phases that execute in order:

Phase	Description
PreSync	Executes before applying manifests
Sync	Executes with the main application manifests
Skip	Skips resource application entirely
PostSync	Executes after successful sync and health checks
SyncFail	Executes when sync fails
PreDelete	Executes before Application deletion
PostDelete	Executes after Application deletion

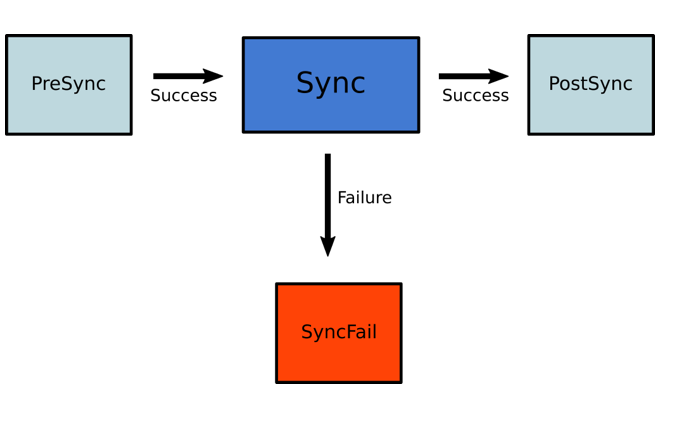

How Phases Work

During a sync operation, Argo CD processes phases sequentially:

1. PreSync hooks run first. If any fail, sync stops
2. Sync hooks and regular resources run. If any fail, SyncFail hooks run
3. PostSync hooks run after all resources are healthy

Hooks do not run during selective sync operations.

Configuring Phases

Assign resources to phases using the hook annotation:

apiVersion: batch/v1
kind: Job
metadata:
  name: db-migration
  annotations:
    argocd.argoproj.io/hook: PreSync
spec:
  template:
    spec:
      containers:
      - name: migrate
        image: migrate-tool:latest
        command: ["migrate", "up"]
      restartPolicy: Never

Multiple hooks can be specified as comma-separated: PreSync,PostSync

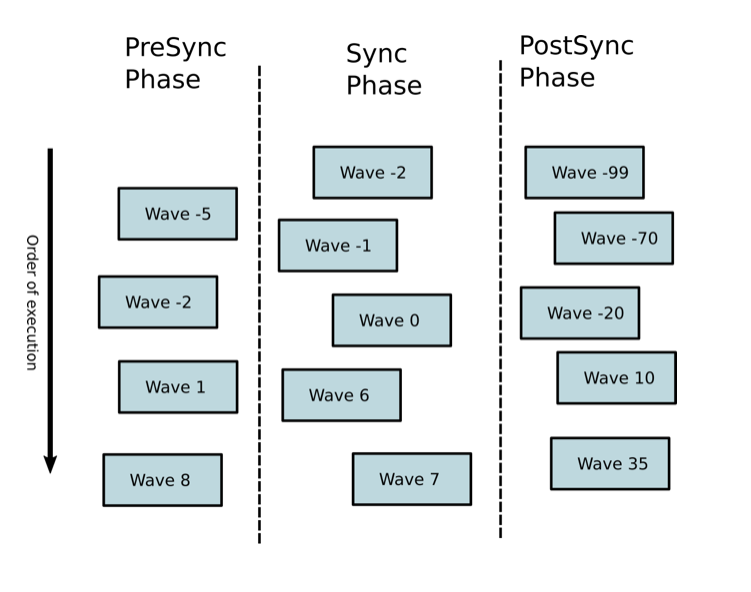

Understanding Sync Waves

Sync waves provide fine-grained ordering within phases using integer values. Resources are applied from lowest to highest wave number.

Key concepts:

• Default wave: 0
• Waves can be negative (e.g., -5 runs before 0)
• 2-second delay between waves (configurable via ARGOCD_SYNC_WAVE_DELAY)
• Argo CD waits for each wave to be healthy before proceeding

Configuring Sync Waves

Use the argocd.argoproj.io/sync-wave annotation:

apiVersion: v1
kind: Namespace
metadata:
  name: my-app
  annotations:
    argocd.argoproj.io/sync-wave: "-5"
---
apiVersion: v1
kind: ConfigMap
metadata:
  name: app-config
  annotations:
    argocd.argoproj.io/sync-wave: "0"
data:
  setting: value
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: my-app
  annotations:
    argocd.argoproj.io/sync-wave: "1"
spec:
  replicas: 3
  # ... deployment spec

Sync Order Priority

Argo CD determines resource order using this precedence:

1. Phase (PreSync → Sync → PostSync)
2. Wave (lowest to highest number)
3. Kind (Namespaces first, then other resources, then custom resources)
4. Name (alphabetical)

Combining Phases and Waves

Use phases for coarse-grained ordering and waves for precise control:

# Wave -1: Database migration (PreSync)
apiVersion: batch/v1
kind: Job
metadata:
  name: db-migrate
  annotations:
    argocd.argoproj.io/hook: PreSync
    argocd.argoproj.io/sync-wave: "-1"
    argocd.argoproj.io/hook-delete-policy: HookSucceeded
spec:
  template:
    spec:
      containers:
      - name: migrate
        image: postgres:13
        command: ["psql", "-f", "migrations.sql"]
      restartPolicy: Never
---
# Wave 0: ConfigMaps and Secrets
apiVersion: v1
kind: ConfigMap
metadata:
  name: app-config
  annotations:
    argocd.argoproj.io/sync-wave: "0"
data:
  database.url: postgres://db:5432
---
# Wave 1: Deployments
apiVersion: apps/v1
kind: Deployment
metadata:
  name: app
  annotations:
    argocd.argoproj.io/sync-wave: "1"
spec:
  replicas: 3
  template:
    spec:
      containers:
      - name: app
        image: my-app:v1.0.0
---
# Wave 2: Services and Ingress
apiVersion: v1
kind: Service
metadata:
  name: app-service
  annotations:
    argocd.argoproj.io/sync-wave: "2"
spec:
  selector:
    app: my-app
  ports:
  - port: 80

Hook Lifecycle Management

Control hook cleanup with delete policies:

metadata:
  annotations:
    argocd.argoproj.io/hook: PostSync
    argocd.argoproj.io/hook-delete-policy: HookSucceeded

Policy	Description
HookSucceeded	Delete after successful completion
HookFailed	Delete after failure
BeforeHookCreation	Delete existing hook before creating new one (default)

If no delete policy is specified, Argo CD defaults to BeforeHookCreation.

Common Examples

Database Initialization

Run database setup before application deployment:

apiVersion: batch/v1
kind: Job
metadata:
  name: db-init
  annotations:
    argocd.argoproj.io/hook: PreSync
    argocd.argoproj.io/hook-delete-policy: HookSucceeded
    argocd.argoproj.io/sync-wave: "-1"
spec:
  ttlSecondsAfterFinished: 360
  template:
    spec:
      containers:
      - name: init-db
        image: postgres:13
        env:
        - name: PGPASSWORD
          value: admin
        command:
        - psql
        - "-h=postgres-db"
        - "-U postgres"
        - "-f init.sql"
      restartPolicy: Never
  backoffLimit: 1

Smoke Tests (PostSync)

Verify deployment health after sync:

apiVersion: batch/v1
kind: Job
metadata:
  name: smoke-test
  annotations:
    argocd.argoproj.io/hook: PostSync
    argocd.argoproj.io/hook-delete-policy: HookSucceeded
spec:
  template:
    spec:
      containers:
      - name: test
        image: curlimages/curl
        command:
        - curl
        - "--fail"
        - "http://my-app/health"
      restartPolicy: Never
  backoffLimit: 3

Slack Notification

Send notification after successful sync:

apiVersion: batch/v1
kind: Job
metadata:
  generateName: slack-notification-
  annotations:
    argocd.argoproj.io/hook: PostSync
    argocd.argoproj.io/hook-delete-policy: HookSucceeded
spec:
  template:
    spec:
      containers:
      - name: notify
        image: curlimages/curl
        command:
        - curl
        - "-X"
        - POST
        - "--data-urlencode"
        - >-
          payload={"channel": "#deployments", "username": "ArgoCD",
          "text": "App sync succeeded", "icon_emoji": ":rocket:"}
        - "https://hooks.slack.com/services/YOUR/WEBHOOK/URL"
      restartPolicy: Never
  backoffLimit: 2

Skip Helm Hook

Prevent Helm-generated hooks from running:

ingress-nginx:
  controller:
    admissionWebhooks:
      annotations:
        argocd.argoproj.io/hook: Skip

PreDelete and PostDelete Hooks

PreDelete Hook

Run cleanup before application deletion:

apiVersion: batch/v1
kind: Job
metadata:
  name: pre-delete-cleanup
  annotations:
    argocd.argoproj.io/hook: PreDelete
    argocd.argoproj.io/hook-delete-policy: HookSucceeded
spec:
  template:
    spec:
      containers:
      - name: cleanup
        image: cleanup-tool:latest
        command: ["cleanup.sh"]
      restartPolicy: Never

Behavior:

• Runs only during Application deletion (not during normal sync with pruning)
• Application deletion blocks until hooks complete successfully
• If hook fails, Application enters DeletionError state

Failure Handling:

• Fix the hook in Git; Argo CD retries on next reconciliation
• Or manually delete the failing hook resource to proceed

PostDelete Hook

Run tasks after all resources are deleted:

apiVersion: batch/v1
kind: Job
metadata:
  name: post-delete-notify
  annotations:
    argocd.argoproj.io/hook: PostDelete
    argocd.argoproj.io/hook-delete-policy: HookSucceeded
spec:
  template:
    spec:
      containers:
      - name: notify
        image: notification-tool:latest
        command: ["send-notification.sh"]
      restartPolicy: Never

Behavior:

• Runs after all Application resources are deleted
• Application CR remains until hooks complete
• Useful for external cleanup, notifications, or audit logs

Advanced Patterns

Multi-Tier Application

Deploy infrastructure, then application, then monitoring:

# Wave -5: Namespace
apiVersion: v1
kind: Namespace
metadata:
  name: my-app
  annotations:
    argocd.argoproj.io/sync-wave: "-5"
---
# Wave -3: Database StatefulSet
apiVersion: apps/v1
kind: StatefulSet
metadata:
  name: postgres
  annotations:
    argocd.argoproj.io/sync-wave: "-3"
spec:
  serviceName: postgres
  replicas: 3
  # ... statefulset spec
---
# Wave -2: Database migration
apiVersion: batch/v1
kind: Job
metadata:
  name: db-migrate
  annotations:
    argocd.argoproj.io/hook: PreSync
    argocd.argoproj.io/sync-wave: "-2"
    argocd.argoproj.io/hook-delete-policy: HookSucceeded
# ... job spec
---
# Wave 0: Application ConfigMap
apiVersion: v1
kind: ConfigMap
metadata:
  name: app-config
  annotations:
    argocd.argoproj.io/sync-wave: "0"
---
# Wave 1: Application Deployment
apiVersion: apps/v1
kind: Deployment
metadata:
  name: app
  annotations:
    argocd.argoproj.io/sync-wave: "1"
# ... deployment spec
---
# Wave 5: Monitoring ServiceMonitor
apiVersion: monitoring.coreos.com/v1
kind: ServiceMonitor
metadata:
  name: app-metrics
  annotations:
    argocd.argoproj.io/sync-wave: "5"
# ... servicemonitor spec

Blue-Green Deployment

Deploy new version, test, then switch traffic:

# Wave 1: New (green) deployment
apiVersion: apps/v1
kind: Deployment
metadata:
  name: app-green
  annotations:
    argocd.argoproj.io/sync-wave: "1"
spec:
  selector:
    matchLabels:
      app: my-app
      version: green
  # ... deployment spec
---
# Wave 2: Test green deployment
apiVersion: batch/v1
kind: Job
metadata:
  name: test-green
  annotations:
    argocd.argoproj.io/hook: PostSync
    argocd.argoproj.io/sync-wave: "2"
spec:
  # ... test job spec
---
# Wave 3: Switch service to green
apiVersion: v1
kind: Service
metadata:
  name: app-service
  annotations:
    argocd.argoproj.io/sync-wave: "3"
spec:
  selector:
    app: my-app
    version: green
  # ... service spec

Troubleshooting

Resources Not Syncing in Order

1. Verify annotations are correct:

   kubectl get <resource> -o yaml | grep sync-wave


2. Check if resources are in different phases

3. Ensure wave values are strings: "0", not 0

Wave Stuck in Progressing

• Check if resources in the wave are healthy
• Review resource events: kubectl describe <resource>
• Check hook job logs: kubectl logs job/<job-name>

Sync Too Slow

Reduce wave delay:

# In argocd-application-controller deployment
env:
- name: ARGOCD_SYNC_WAVE_DELAY
  value: "1"  # 1 second instead of default 2

Best Practices

Use Negative Waves

Reserve negative waves for infrastructure (namespaces, CRDs, databases)

Group by Dependency

Assign the same wave to resources without dependencies

Test Hooks Separately

Test hooks manually before adding to production

Clean Up Hooks

Always use delete policies to avoid resource buildup

Be cautious with PreDelete hooks - failed hooks will prevent Application deletion.
